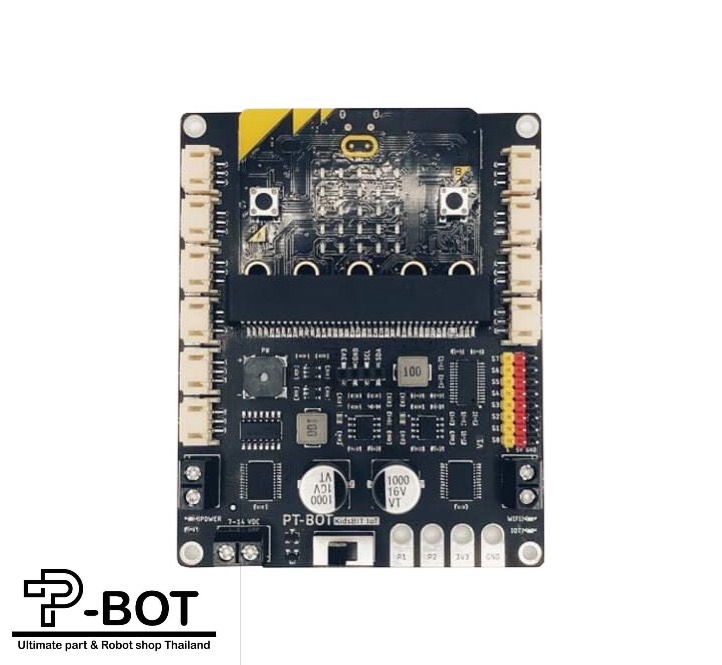

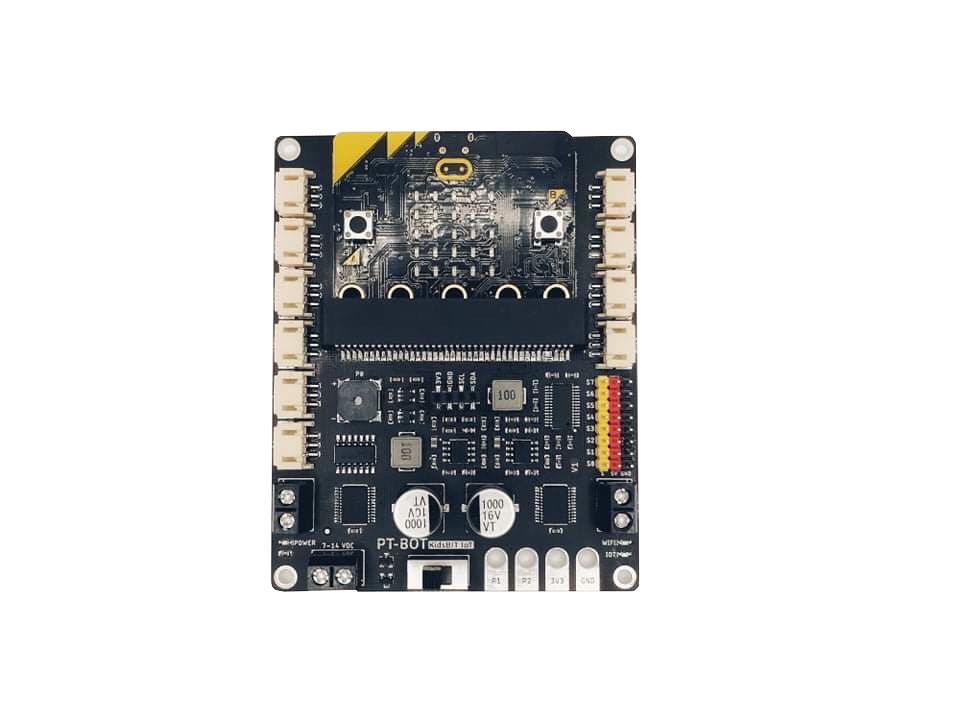

PT-BOT KidsBIT (micro:bit not included)

The PTKidsBIT controller board support the micro: bit microcontroller. The Microsoft Programming Experience Toolkit or Microsoft PXT Block Editor, JavaScript and Python software is recommended. PTKidsBIT supports dc motors, servos, and sensors, suitable for controlling robots and learn programming basics.

Specification

• Support the micro: bit microcontroller
• Size : 70 mm. x 70 mm. x 12 mm.
• 8 channels analog input from ADC converter (ADS7828)
• Piezo speaker
• 2 channels dc motor 1.2A per channel (3.2A peak)
• 2 channels servo motor
• Power 5-14 VDC with reverse polarity protection circuit

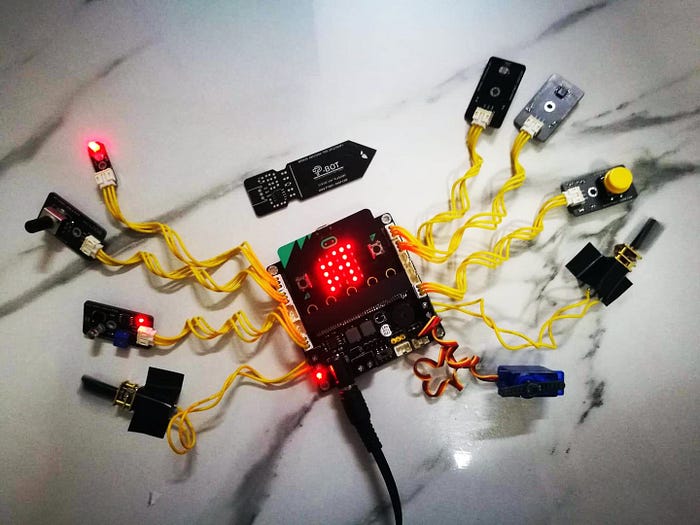

Usage



Line follower robot
